Patterns – Spec Formliners, Inc

1101

Standard Spec Rib

0.75" depth
1.5" C-C
0.5" peak
0.5" valley

1102

Corea Flute

1.75" depth
3" C-C
1" peak
1" valley

1103

Stanton Rib

1" depth
2" C-C
1" peak
0.25" valley

1104

Denver Rib

1.5" depth
3.375" C-C
2" peak
0.75" valley

1105

Las Vegas Rib

1" depth
2" C-C
0.5" peak
0.5" valley

1106

Dover Rib

1" depth
2.5" C-C
0.875" peak
0.875" valley

1106A

Dover Flute

1.25" depth
2.5" C-C
0.75" peak
1" valley

1201

Rough Sawn 8" Wood

6.875" and 8"
alternating planks
1" depth

1202

Grape Stake

2" board width
0.75" depth

1203

Barnwood

2.75"-6.875" board width
0.0625" depth

1204

Random 3/8" Board

5.25"-9.25" board width
0.375" depth

1205

Smooth Ship Lap

6" width
0.50" depth

1207

Cedar Plank

4" board width
0.3125" depth

1208

Rough Sawn Random Boards

1.625"-8.75" board width
0.25" depth

1209

6" Pine Wood Grain

5.75" board width
0.1875" depth

1210

Random Pine Wood Grain

1.625"-8.75" board width
0.625" depth

1212

Light Wood Grain 581

3.5" board width
0.25" depth

1213

Weathered Tongue and Groove

8" board width
0.25" depth

1214

Board & Batten

10" and 2" board and batten
0.75" depth

1215

6" Woodgrain Shiplap

6" board width
0.75" depth

1216

Weathered Wood Grain

4" board width
0.25" depth

1217

Random Wood

1.75" to 7.50" width
0.75" depth
2.25" to 6.25" mortar joints
May require backing

1218

3" Rough Cut Board

3" width
0.125" depth

1221

Stepped Wood Planks

1.5" board width
0.75" depth in two steps

1222

Heavy Sawn Wood

1.75" to 5" width
0.25" depth

1224

Historic Wood Grain

5.50" width
~0.125" to ~0.1875" depth

1224_Plastic

Historic Wood Grain (Plastic)

~5.50" pattern repeat
~0.125" to ~0.1875" depth

1226

Random Cedar Board Form

2.875"-10.75" board width
0.625" depth

1227

Spec Wood

0.75" depth
12" C-C
2.50" squared peaks
9.50" valleys

1231

Split Cedar Shingle

4"-8" board width
0.5" depth

1235

Wire Brush Grooved Textured Wood

2.75"-4.75" board width
0.25" depth

1236

Native Wood

7.5" board width
0.25" depth

1240

6" Wood Grain Shiplap

6" board width
1" depth

1242

Barnwood with Reveal

2.5"-9" board width
0.25"-0.5625" depth

1244

Pirate Plank

3" width
~0.25" depth

1245

California Board

0.25" depth
9" C-C
1" mortar joints
8" boards

1248

Wood Grain Reveal

1.50" depth
12" C-C
6" peaks
6" valleys

1249

Mendota Redwood

3.5"-5.5" board width
0.25" depth

1250

6" Rough Sawn Plank

5.5" board width
0.75" depth

1251

6" Tongue & Groove

0.25" depth
6" C-C
5.50" plank widths
0.50" mortar joints

1252

Weathered Barnwood

0.25" depth

1253

6" Wood Plank with Reveal

6" board width
0.375" depth

1254

Rough Cedar Plank

4.36" width
0.125" depth

1255

Coyote Wood

6" board width
0.375" depth

1259

Cabin Board

0.1875" depth
6" C-C
0.125" mortar joints

1264

Seattle Ship Lap

0.50" depth
4" C-C

1265

Reckwood

0.50" depth
Random curved flutes

1267

8" Woodgrain Plank Ship Lap

0.50" depth
8" C-C

1268

LA Plank

3.25" pattern repeat
0.1875" max depth

1269

Knotty Plank

0.1875" depth
5.50" planks
0.0625"-0.125" mortar joint

1272

Wood with Reveals

6" pattern repeat
0.25" max depth

1301

Slump Block

4"x16" brick size
0.375" depth

1302

Old Brick

3"x8" brick size
0.1875" depth

1303

Standard Spec Smooth Brick

2.25" x 7.75" brick size
0.375" max depth

1305

Random Size Split Face Block

4" to 16" block sizes
1.125" depth
1.50" mortar joints

1306

8" x 2-1/2" Smooth Brick

8"x2.5" brick size
0.25" depth

1309

Richtex

3.6875"x11.6875" brick size
0.125" depth

1311

12" Used Brick Running Bond

2.5"x11.5" brick size
0.375" depth

1314

Paraloam Brick

Running Bond with 2.50" x 9.50" brick sizes
0.3125" depth
0.50" mortar joints

1315

LIE Brick

11.625" x 3.625" brick sizes
0.50" depth
0.375" mortar joints
6 running bond coursings and 1 soldier coursing

1316

LIE Sawtooth Brick

5.60" C-C width
3" C-C height

1317

3" x 10" Rough Wire Brick Running Bond

3"x10" brick size
0.375" depth

1319

Weathered Brick

3.625" x 11.625" brick sizes
0.25" depth
0.375" mortar joints

1321

Vertical Stacked Brick

3.625" x 11.625" brick sizes
0.25" depth
0.375" mortar joints

1323

4" x 12" Rough Wire Brick Running Bond

4"x12" brick size
0.25" depth

1325

3" x 8" Rough Brick Running Bond

2.5"x7.625" brick size
0.1875" depth

1326

Aggrebrick

2.25" x 7.625" brick sizes
0.375" depth
0.375" vertical mortar joints
0.417" horizontal mortar joints

1330

Roller Brick

2" x 11.625" smooth bricks
0.375" max. depth
0.375" mortar joints

1337

Closure Brick

4" x 8" smooth bricks
0.25" max. depth
0.375" mortar joints

1340

Aggrebrick Soldier Course

2.25" x 7.625" brick sizes
0.375" depth
0.375" vertical mortar joints
0.417" horizontal mortar joints

1341

Aggrebrick Herringbone

2.25" x 7.625" brick sizes
0.375" depth
0.375" horizontal mortar joints

1402

12" x 12" Split Face Block

12" x 12" C-C split face blocks - stacked bond
0.625" depth
0.375" mortar joints

1403

8" x 8" Split Face Block

8"x8" C-C blocks
0.75" depth

1404

8" x 16" Standard CMU Block

8"x16" C-C blocks
0.375" depth

1407

8" x 16" Split Face Block

8"x16" block size
0.375" depth

1408

CMU Sand Block

7.50" x 15.50" block sizes
0.375" depth
0.50" mortar joints

1409

8" x 16" Split Face Stackend Bond

8"x16" block size
0.375" depth

1413

8" x 8" Standard CMU Block

8"x8" block size
0.375" depth

1425

Canon Bond Block

random block size
1.5" depth

1426

American Smooth Face Block

15.50" x 3.50" smooth running block bond sizes
0.125" depth
0.50" mortar joints

1427

Custom Canon Bond Block

21" x 45" running block bond sizes
1.50" depth
3" mortar joints

1429

Split Rib Block

8"x2.75" block size
0.75" depth

1430

Cranston Split Block

11.5"-24" block size
1.5" depth

1431

LS Block

23.625" W x 15.625" H block sizes
0.375" depth
0.4375" mortar joints

1433

Mountain Creek Block

15.50" x 39.50" block sizes
1.50" depth
0.50" mortar joints

1439

12" x 24" Smooth Face Block

23.625" W x 11.625" H block
0.375" max depth
24" horizontal C-C
12" vertical C-C

1501

Dry Stack Fieldstone

Rock height varies
Rock width varies
1.5" depth

1502

Ashlar Stone

2.5"-11" rock height
2.5"-17" rock width
1.25" depth

1503

Red E Cobblestone

9" rock height
11"-18" rock width
1.5" depth

1505

Madera Flagstone

7"-24.5" rock height
7.5"-24" rock width
1.75" depth

1506

Random Block Ashlar Stone

4"-42" rock width
1.5" depth

1508

Large Dry Stack Fieldstone

2"-6" rock height
5"-23" rock width
1.25" depth

1510

Rocky Mountain Flagstone

4"-40" rock width
2" depth

1511

Devils Slide Strata

rock height varies
rock width varies
3" depth

1513

SC Fractured Granite

1" depth

1515

SC Ashlar

8.25"-26" rock height
3.75"-14" rock width
1.5" depth
0.75" mortar joint

1517

St. Marys Ashlar

8.25"-26" rock height
3.75"-14" rock width
1.5" depth

1519

Tallahassee Ashlar

7"-28" rock width
1" rock depth
~3/4" to 1" joint width (varies)

1520

Batavia Random Fieldstone

3"-26" rock width
2.5" depth

1521

Tahoka Stone

6.5"-13" rock height
9"-30" rock width
2" depth

1523

RE Ashlar

8"-25.5" rock width
5"-12" rock height
1.5" depth

1524

San Diego Dry Stack

3" to 7.50" rock heights
7.50" to 28" rock widths
1" depth
0.50" to 0.5625" mortar joints

1526

La Sierra Fieldstone

5" to 11" rock heights
6" to 29" rock widths
2" depth
0.50" to 0.75" mortar joints

1534

Large Running Bond Stone

7.25"-22" rock width
1.5" depth

1535

Amboy Cut Stone

2" depth

1536

Mammoth Cobblestone

3"-6" rock width
1.25" depth

1537

Colorado Red Flagstone

5"-30" rock height
2.5"-13" rock width
1.5" depth

1538

Cut Textured Stone

16.5"-56" rock height
13" rock width
1.5" depth

1541

Rush Creek Ashlar

Up to 30" rock width 2" depth (1.5" in plastic)

1542

Portland Dry Stack

4" to 8" rock heights
5" to 24" rock widths
1.50" depth
0.75" mortar joints

1544

Ashlar Dry Stack

5"-26" rock width
0.75" depth

1545

Kona Rock

5.25"-18.5" rock height
5.5"x17.25" rock width
0.75" depth

1546

American Cut Stone

14" rock heights
14" to 47" rock widths
3" depth
0.75" mortar joints

1547

Colorado Flagstone

8"-14" rock width
2.5" depth

1548

Chester Dry Stack

5"-26" rock width
1.75"-2.5" depth

1549

Chiseled Limestone

12" rock height
24" rock width
1.5" depth

1550

Fractured Basalt

2" depth

1553

Cut Ashlar

3.25"-12" rock height
6"-32" rock width
0.75" depth

1555

Navasota Ashlar Stone

rock width up to 30"
1.625" depth

1556

Franklin Aged Ashlar

3"-25.375" rock height
1"-9.5" rock width
0.75" depth

1558

Liberty Dry Stack

3.5"-25.25" rock height
1.5"-10.5" rock width
1.375" depth

1570

Klamath Dry Stack

2"-23.5" rock height
1.5"-13.5" rock width
1" depth

1572

Ashlar Cobblestone

3"-7.25" rock height 5.75"-6" rock width 0.5" depth

1573

Independence Ashlar

10"-33.5" rock width
1.5" depth

1577

Random Cobblestone

1-1/2" depth
0.75" mortar joint
3"-8" rocks

1579

Summit Rock

3"-18.25" rock height
2.75"-9.5" rock width
1.25" depth

1580

Lincoln Dry Stack

1-3/8" depth
4"-30" stones

1581

Washington Dry Stack

1.5"-7" rock height
4"-24" rock width
1" depth

1582

Stone Ground Granite

0.5" depth

1585

Oneida Rectangular Stone

24"-72" rock height
23" rock width
1.5" depth

1587

California Dry Stack

3"-24" rock width 1.25" depth

1587A

1587A California Dry Stack

3"-24" rock width
1.25" depth

1587AB

1587A/B California Dry Stack

3"-24" rock width
1.25" depth

1587B

1587B California Dry Stack

3"-24" rock width
1.25" depth

5501

American 12"x24" Stone

11" rock heights
23" rock widths
1.625" depth
1" mortar joints

5502

American 24"x48" Stone

23" rock heights
47" rock widths
1.625" depth
1" mortar joints

5503

American Stone

15⁄8" (41mm) deep rib
10" to 30" stones
6" coursing

5527

Cut Random Stone

2" (50mm) deep cut stone
3⁄4" mortar joint
14" coursing
Note: 44.25" panel width

5533

Keystone Ashlar

7" to 23" W x 3" to 14.4" H stones
1.25" depth
0.50" to 0.75" mortar joints

5535

Fall River Cut Stone

2" depth
1" mortar joints

5536

Cracked Limestone

1.50" depth
0.50" to 0.75" mortar joints

5537

Custom Random Fieldstone

8" to 24" rock sizes
0.75" depth
0.50" to 1" mortar joint
1505 modified to 0.75" depth

5538

Arizona River Rock

4" to 12" rock heights
4" to 12" rock widths
1.50" depth
0.50" to 1" mortar joints

5550

Kane Long Stone

3.61" to 17.54" W x 3.61" to 7.61" H stones
0.50" maximum depth
0.25" maximum texture relief
0.39" mortar joint

5552

Colorado Granite

7" to 28" rock heights
5.50" to 18.50" rock widths
3.50" depth
0.50" to 0.75" mortar joints

5554A

Coastal Fieldstone A

1.60" to 20" W x 1.50" to 10.60" H rocks
Individual rock shapes may vary
1.50" maximum depth
Panels available in 4' x 8'

5554B

Coastal Fieldstone B

1.60" to 20" W x 1.50" to 10.60" H rocks
Individual rock shapes may vary
1.50" maximum depth
Panels available in 4' x 8'

5558

Custom Cobblestone

~12" maximum stone size
2" maximum depth

5561

CG American Stone

10" to 30" width stones
1" maximum depth
0.50" mortar joint
7" vertical C-C

5563

Coastal Basalt

2" maximum depth

5565

Spec Ledgestone

1/2” maximum depth
~3"-12" width
1"-4" height

5566

Virginia Rock 2"

1/8" - 1” mortar joint
2" depth
6” to 30" width rocks
3-7/8" to 17-1/4" height rocks

5567

Virginia Rock 1"

1/8" to 1” mortar joint
1" depth
6” to 30" width rocks
3-7/8" to 17-1/4" height rocks

5578

Desert Cobble

1” maximum depth
~2"-24" width

1601

Light to Medium Sandblast

0.125" depth

1602

Heavy Sandblast

0.25" depth

1603

Bush Hammer

1" depth

1605

Broom/Rake Texture

0.0625" depth

1606

Random Large Aggregate

0.25" depth
0.75" rock size

1607

Riverbed Aggregate

0.1875" depth

1608

Split Slate

0.25" rock size

1609

1" Round Stone

0.5"-1.5" depth
0.5" rock size

1613

Fractured Concrete

0.75" rock size

1614

Smooth Sheet

Smooth sheet

1615

Medium Bush Hammer

0.25"-0.5" depth 0.375" rock size

1616

Stucco Texture

Stucco texture

1617

Crushed Stone

Crushed stone

1621

Tasman Slate

0.125" depth

1626

Kleen Slate

0.75" rock size

1628

Colorado Tile

0.375" depth
16" C-C tiles
0.375" mortar joint

1630

Pollock Stucco

0.125" depth

1632

Contee Granite

0.3125" depth

1634

KL Medium Sandblast

0.1875" depth

1636

Texas Sandblast

0.125" to 0.1875" depth

1637

Split Face Granite

0.50" average depth to
0.75" maximum depth

1639

Erie Slate

0.25" max depth

1651

Light Sandblast

~0.0625" depth

1655

Striated Drag

1/8” (3mm) depth

1669

Southwest Split Face

0.625" average depth to
1.25" maximum depth

1702

302 Standard Spec Flute

1.5" depth
4" C-C
1.5" peak
1.5" valley

1703

Filmore Flute

1.5" depth
6" C-C
2" peak
3" valley

1704

304 Standard Spec Flute

0.75" depth
2" C-C
0.75" peak
0.75" valley

1705

305 Standard Spec Flute

0.5" depth
1.5" C-C
0.5" peak
0.5" valley

1706

303 Standard Spec Flute

1.5" depth
2" C-C
0.5" peak
0.5" valley

1707

Lincoln Flute

0.75" depth
6" C-C
2.5" peak
2.5" valley

1708

1/2" Sine Wave

0.5" depth
1" C-C
0.5" peak
0.5" valley

1709

Houston Flute

0.75" depth
1.5" C-C
0.5" peak
0.5" valley

1710

Connecticut Flute

0.5" depth
2" C-C
0.875" peak
0.875" valley

1712

Utah Flute

1-1/2” depth
6" C-C
2-1/2" peak
2-1/2” valley

1713

Colorado Flute

1.5" depth
3" C-C
1" peak
1" valley

1714

Wilson Flute

1" depth
2" C-C
0.75" peak
0.75" valley

1715

San Diego Flute

0.25" depth
0.594" C-C
0.25" peak
0.25" valley

1716

Waimea Flute

0.50" depth
8" C-C
7" peak
1" V-Groove valley

1717

Santa Fe Flute

1.5" depth
6" C-C
1.125" peak
3.875" valley

1718

Arizona DOT Random Flute

1.5" depth
random C-C
random peak
random valley

1720

Taft Flute

1.5" depth
5" C-C
2.5" peak
1.5" valley

1721

307 Standard Spec Flute

0.75" depth
4" C-C
2.5" peak
1.5" valley

1722

1/4" Sine Wave

0.25" depth
0.5" C-C

1723

Wyoming Flute

0.5" depth
6" C-C
4.5" peak
0.5" valley

1724

Mesa Flute

1.5" depth
4.5" C-C
1" peak
2.5" valley

1725

1725 Walters Flute

0.375" depth
1.50" C-C
0.75" squared peaks
0.75" valleys

1726

Orlando Flute

0.75" depth
3" C-C
1" peak
1.5" valley

1730

Colfax Flute

0.75" depth
3" C-C
1.5" peak
1" valley

1731

Random 3/16" Striation

0.1875" depth
random C-C
random peak
random valley

1732

Random Reveal

1" depth
random C-C
random peak
random valley

1734

Adrian Flute

0.75" depth
4" C-C
1.75" peak
1.75" valley

1738

3/8" Flute

0.5" depth
1" C-C
0.375" peak
0.375" valley

1739

Gila Flute

1.25" depth
6" C-C
3.5" peak
1" valley

1740

See9

0.875" depth
2.667" C-C

1741

Perris Flute

0.75" depth
3" C-C
1" peak
1" valley

1744

Varying Striations

0.25" depth
C-C varies
peak varies
valley varies

1745

Standard Spec 309

0.75" depth
3" C-C
0.75" peak
1.75" valley

1751

MTU Flute

1" depth
2" C-C
0.5" peak
0.5" valley

1752

Long Ripple Rib Flute

0.0625" depth
0.375" C-C

1753

Narrow Rippled Rib

0.0625" depth
0.125" C-C

1760

Maui Flute

0.25" depth
1.5" C-C
0.625" peak
0.75" valley

1761

1" Sine Wave

0.5" depth
2" C-C

1765

Franklin Flute

0.5" depth
1.25" C-C
0.375" peak
0.375" valley

1766

6" Sine Wave

1" depth
6" C-C

1767

Chestnut Flute

0.875" depth
6" C-C
4" peak
1" valley

1771

Sawtooth

0.75" depth
1.50" C-C
1.50" wide triangles

1774

Bryan Flute

5" C-C
1-1/2" depth

1775

Spare Rib Flute

1" depth
4" C-C
1.25" peak
2.25" valley

1777

Textured Grave Stake

0.75" depth
random boards

1781

Arizona DOT Random Flute Modified

1" depth
1"-5.5" peak
2"-7" valley

1784

Pinnacle Flute

1" depth
1.5" C-C

1786

3/4" Sine Wave

0.75" depth
2" C-C

1789

WTP Flute

1.5" depth
4.5" C-C
3" peak
0.5" valley

1791

Boat Ramp Flute

0.6875" depth
1.45" C-C
0.0" peak
0.0" valley

5732

6/2 Swell

2" depth sine wave
6" C-C

5730

Map Flute

0.5" depth
12" C-C
11" peak
0.5" valley

5733

Machado Flute

.75" depth
5-1/2" C-C
4" peak
1" valley

5754

5754 Carlsbad Flute

1.5" depth
4" pattern repeat

5939

MBTA Pyramid (Custom)

1" depth
All endpoints to middle of square 4"

5773

Kings Flute

0.75" depth
12" C-C
1.5" triangular valley

1806

Honeycomb

Random 0.25", 0.50", 0.75" and 1" depths
Matching hexagon shapes

1807

Cracked Earth

0.50" maximum depth

1808

Curtains

Random curtain like-striations
2.25" to 5" widths
1" maximum depth
Requires backing

1810

Big Bubble

1" (25mm) bubble height/depth
4'x4' (1.2m x 1.2m) pattern repeat

1811

Circu-llusions

0.5” (12mm) oval depth
4' x 4' (1.2m x 1.2m) pattern repeat

1812

Dou-Bulbs (In)

0.75” (19mm) Feature Depth
18" Feature length

1813

Dou-Bulbs (Out)

0.75” (19mm) Feature Depth
18" Feature length

1815

Mahalo Wave

0.75" Max. Depth

1830

Gardens Chevron 1

30" x 30” repeating motif
1.5" Max. depth

1831

Gardens Chevron 2

36" x 36” repeating motif
1.5" Max. depth

1840

Large Basket Weave

1.25" Max. Relief
12" Tall Weave Rows

20002

1-1/4" base
3/4" top
3/4" height

20003

2" base
1" top
3/4" height

20005

2" base
1" top
1-1/2" height

20008

1-1/4" base
1" top
3/4" height

20011

1-1/4" base
1" top
1" height

20014

2-1/4" base
1-1/2" top
3/4" height

20019

3" base
3" height

20024

3/4" base
3/4" height

20029

3" base
1-1/2" top
3/4" height

20078

1" base
0.88" top
1" height

1106B

1106B Dover Flute

1" depth
2.5" C-C
1" peak
1" valley

1106Wavy

Wavy Dover Flute

1" depth
2.5" C-C
1" peak
1" valley

1107

Mission Flute

1.5" depth
2" C-C
0.75" peak
0.75" valley

1107Custom

1107 Custom

1.5" depth
2" C-C

1108

Washington Rib

1.25" depth
2" C-C
1" peak
0.5" valley

1109

Abiline Rope

1.625" depth
4" C-C
2" peak
2" valley

1110

Bush Rib

1.5" depth
3" C-C
1" peak
1" valley

1111

Harbor Rib

1.5" depth
6" C-C
2" peak
3" valley

1112

JLD Flute

0.625" depth
1" C-C
0.5" peak
0.25" valley

1114

1/2" Fractured Rope

0.5" depth
2" C-C
1" peak
1" valley

1115

Yumpa Rib

0.75" depth
8" C-C
7" peak
1" valley

1116

Jackson Rib

0.375" depth
1.25" C-C
0.4375" peak
0.4375" valley

1117

Split Face Rib

1" depth
4" C-C
3" peak
0.75" valley

1118

Ripped Rope Rib

0.75" depth
3" C-C

1121

Rebar #6

1.25" depth
5.5" C-C
0.75" valley

1123

Vedder Flute

1.375" depth
2" C-C
0.75" peak
0.5" valley

1124

Zaha Rib

1.5" depth
1" peak
3.5" C-C
1.5" valley

1124A

1124A Zaha Rib

1.5" depth
3.5" C-C
1" peak
1.5" valley

1124B

1124B Zaha Rib

1.5" depth
3.5" C-C
1" peak
1.5" valley

1125

Galloway Rib

1.25" depth
2" C-C
0.75" peak
0.75" valley

1127

Extreme Fractured Rib

1.5" depth
2" C-C
0.75" peak
0.75" valley

1128

Utah Rib

0.625" depth
~1.4375 C-C
0.50" peaks
0.50" valleys

1130

Conor Rib

0.75" depth
1.5" C-C
0.75" peak
0.25" valley

1131

Boise Rib

1" depth
4" C-C
3" peak
0.75" valley

1132

Atlantic Rib

1.25" depth
4" C-C
1.875" peak
1.875" valley

1133

Pontiac Rib

1" depth
3.5" C-C
1.5" peak
1.5" valley

1140

Rio Hondo Rib

1.25" depth
3" C-C
1.625" peak
0.75" valley

1142

Long Island Rib

0.5625" depth
1.5625" C-C
0.5625" peak
0.5625" valley

1143

Florida Flute Modified

1" depth
4" C-C
1.5" peak
2" valley

1146

Cimarron Rib

0.625" depth
3" C-C
2" peak
0.75" valley

1147

Napa Rib

1" depth
1.5" C-C
0.5" peak
0.5" valley

1149

Park Rib

1" depth
2.5" C-C
1.25" peak
1" valley

1153

Phoenix Rib

1.125" depth
Random C-C

1154

Walters Flute

0.375" depth
1.50" C-C
0.75" squared peaks
0.75" valleys

1155

T-Rex Rib

1.50" depth
9.625" C-C
7" peaks
2.625" valleys

1161

Honor Rib

1" depth
2" C-C
1.125" peak
0.5" valley

1168

Duke Rib

1/4” (6mm) max. depth
2/3" (17mm) C-C

1171

Colorado Drag

1.5" depth
1.5" - 5"random flute width
1.5" valley
.25" draft

1172

Fox Rib

~1/2” (13mm) max. depth
~4" (100mm) C-C
~3-1/8" (80mm) rib width
~47.25" x 10' (1.2m x 3.05m)

1173

Temecula Rib

1” (25mm) max. depth
1-1/2" (38mm) C-C

5127

1" Extreme Fractured Rib

0.5"-1" (25mm) extremely fractured fin
2" (51mm) pattern repeat

1273

6" Board Planks

6” planks
1/8" (3mm) Max. board variance

1275

Bunyan Planks

Uneven planks with heavy wood grain
8-3/4" to 13-1/2" wide
.75" Max. Relief

1278

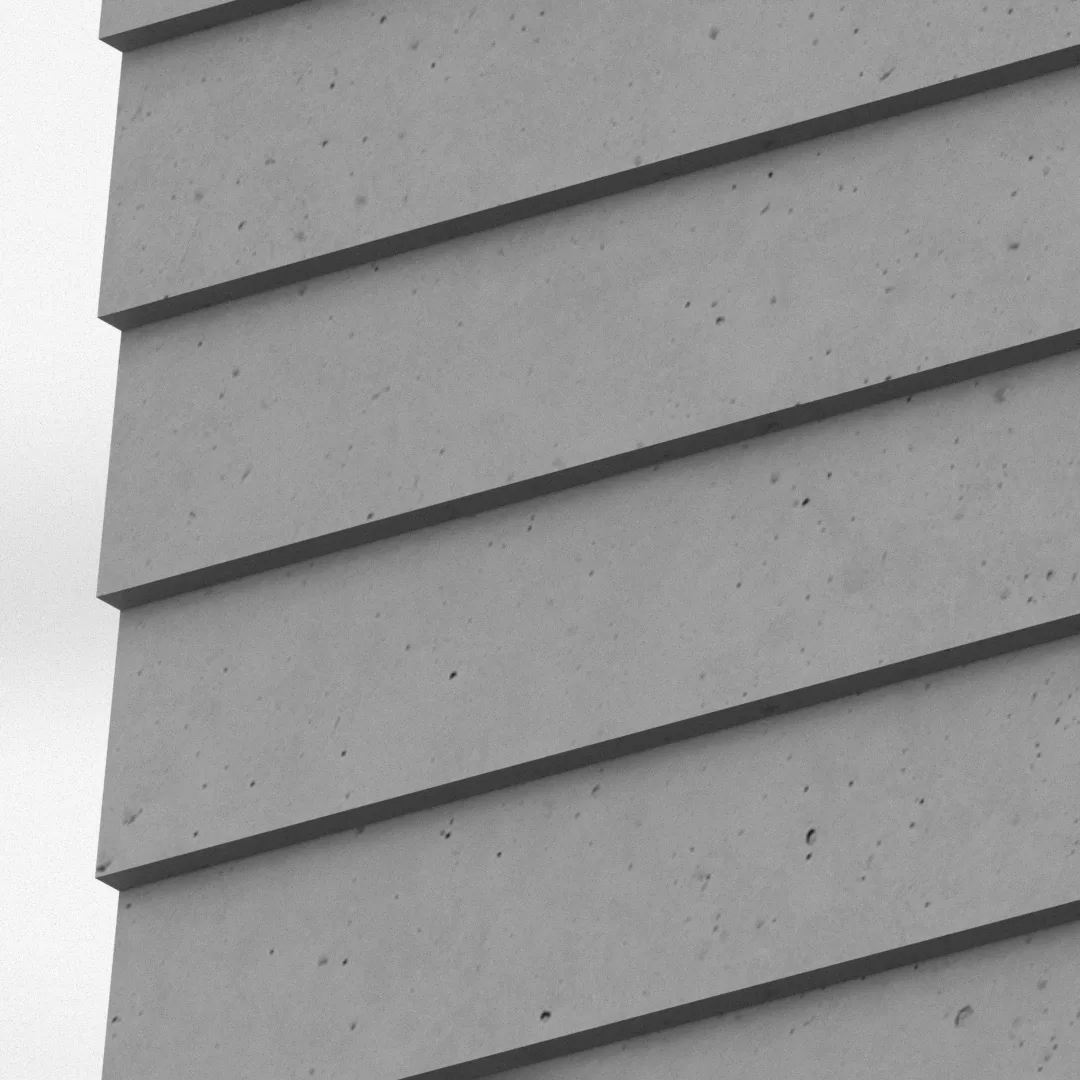

Davey Shiplap

3" (76mm) plank width
3/8" (9.5mm) relief
